Description

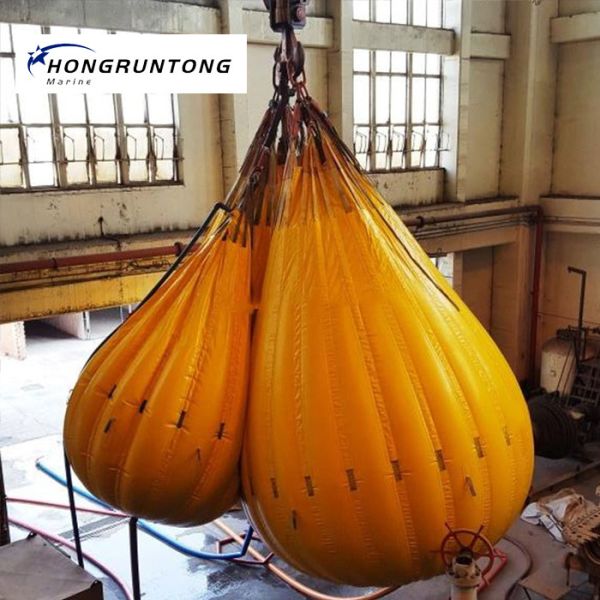

Water Weight Bags are precision-engineered proof load testing devices designed for lifting appliances that require gradual load application, traceable load accuracy, and simplified logistics. Unlike fixed solid weights, Water Weight Bags utilize controlled water filling to incrementally increase load, allowing operators to monitor structural behavior at every stage. Manufactured from high-tenacity coated fabrics with reinforced lifting points, the bags offer predictable load expansion characteristics, low transport weight, and high operational safety. The design commonly incorporates multi-chamber geometries for stable load distribution, high-capacity valves for efficient filling/emptying, and certified lifting harness assemblies configured to international standards.

Each Water Weight Bag undergoes strict dimensional inspection, seam strength verification, hydrostatic validation, and proof load simulation before delivery. Quality control includes adhesive integrity analysis, thermal-bond inspection, and tensile pull-testing on webbing attachments. The result is a robust, field-reliable testing instrument suitable for cranes, davits, hoists, ship loaders, and elevated platforms. By integrating transparent flow meters and discharge management components, operators can calibrate the applied load with accuracy typically within ±1%. This controllable loading method reduces risk during dynamic testing and improves efficiency for both onshore and offshore operations.

Case Study: Deep Water Port Gantry Crane Commissioning in Oman

In 2024, a major deep-water port in Oman conducted a comprehensive commissioning program for a newly built 65-ton gantry crane designed for container handling in high-temperature marine environments. Traditional counterweight blocks were not an option due to limited truck access and operational restrictions in the quay area. The engineering contractor partnered with Hongruntong Marine to deploy a full set of 10-ton and 20-ton Water Weight Bags configured for multi-point lifting load distribution.

During the first test stage, technicians performed incremental loading at 25%, 50%, and 75% of the rated capacity to verify mechanical synchronization of the gantry’s dual hoisting drums. The gradual filling capability allowed engineers to detect slight drift between the drums at partial load, which could not have been identified using instant full-load solid weights. After adjusting the tension equalizing system, the second stage proceeded smoothly.

In the full-load proof test, 65 tons of water were arranged using 7 individual bags connected through calibrated flow meters. Operators maintained real-time visibility of the loading data while monitoring structural stress on the crane’s girder. The test confirmed compliance with specifications and identified no abnormalities. Finally, the entire load system was drained within one hour, freeing quay space without transport delays.

The contractor reported a 40% reduction in testing time and 70% lower logistics cost compared with conventional steel test weights. The precision of the controlled loading process also improved the accuracy of system diagnostics, resulting in a successful commissioning process under challenging environmental conditions.

Specifications

Features

Multi Layer Structural Reinforcement System

Set 5 emphasizes our advanced structural reinforcement concept based on a multi-layer composite design. The inner bladder is formed from chemical-resistant thermoplastic polyurethane (TPU) with high elasticity to accommodate controlled volumetric expansion. An outer structural layer of high-tenacity polyester grid fabric provides primary tensile strength, while the load-bearing webbing is anchor-stitched using multi-point crossover patterns to distribute force across the entire surface. This layered architecture ensures predictable deformation, high burst resistance, and long-term durability under cyclic loads. The system minimizes stress concentrations, especially at lifting points and seams, reducing the probability of failure during high-capacity testing.

Precision Load Calibration Flow Management Technology

An advanced feature of this configuration is the integration of precision flow management components, including high-accuracy mechanical or digital flow meters (depending on project requirements), oversized fill valves, and controlled discharge manifolds. These components allow the operator to apply load with measurable increments, typically at 1–2% steps. The valves are constructed from anti-corrosive stainless steel alloys to maintain sealing integrity in marine environments. The controlled flow ensures stable load application and helps prevent sudden dynamic forces, making the system ideal for precision engineering tests such as synchronized hoisting devices and safety brake evaluations.

Harsh Environment Resistance Long Term Service Reliability

The material selection and fabrication protocols focus on resilience in extreme environmental conditions. TPU-coated fabrics exhibit superior UV resistance, hydrolysis stability, and salt-spray endurance, making them suitable for tropical ports, offshore platforms, and desert-coastal regions. Welded seams undergo thermal bonding, ultrasonic sealing, and additional seam taping to eliminate micro-leak pathways. All metal components are marine-grade to avoid corrosion, while optional protective sleeves shield the lifting webbing from abrasion or heat exposure. These features support long service life and reliable performance even after repeated high-load cycles.

Modular Deployment Architecture for Complex Lifting Tests

Unlike earlier sets, Set 5 focuses on modularity. Water Weight Bags can be connected in various clusters—parallel, series, or hybrid configurations—to simulate complex multi-point loading scenarios. Each bag includes universal attachment points compatible with standard shackle configurations, spreader beams, or equalizing frames. This architecture is ideal for large-scale tests such as dual-hoist cranes, ship-mounted A-frames, or offshore lifting towers that require load distribution across different structural positions. Modular deployment allows engineers to design precise loading matrices without redesigning equipment or altering existing infrastructure.

Applications

Structural Flexibility Deformation Assessment

Set 5 emphasizes applications where the Water Weight Bag’s predictable deformation and adjustable loading characteristics allow engineers to evaluate structural flexibility and bending behavior. This includes long-span crane booms, articulated lifting arms, and telescopic structures in ports and offshore vessels. Incremental water loading makes it possible to identify non-linear deflection patterns and validate structural response under varying load stages.

Multi Point Load Synchronization Tests

The modularity of these bags makes them excellent for verifying synchronized lifting performance. Examples include dual-drum hoists, tandem crane operations, elevator counterweight systems, and balanced lifting platforms. Engineers can adjust the load on each point independently to verify equal load distribution and diagnose mechanical mismatch in synchronization systems.

Dynamic Response Safety System Verification

Water Weight Bags support testing of braking mechanisms, safety interlocks, overload prevention devices, and emergency stop systems. Incremental load increases allow controlled triggering of safety thresholds without risking sudden overload events. This application is essential for offshore cranes, ship davits, rescue boat handling systems, and other mission-critical lifting equipment.

Why Choose Hongruntong Marine

Engineering Driven Custom Design Framework

Hongruntong Marine offers a research-based customization system that goes beyond typical catalog products. Each Water Weight Bag is designed using finite element load simulation, material fatigue modeling, and seam stress prediction performed by our engineering team. This engineering-driven approach ensures that every product configuration—size, shape, lifting arrangement, and reinforcement pattern—is optimized for the customer’s exact load scenarios.

Advanced Fabrication & Quality Assurance Technology

Our manufacturing facilities integrate automated cutting machines, multi-stage thermal bonding systems, and precision welding units. Quality assurance uses hydrostatic pressure testing, tensile load verification for webbing, ultrasonic seam inspection, and digital dimensional scanning. Every bag is serialized for full traceability and delivered with test certificates, fabrication records, and compliance documentation according to international testing standards.

Global Technical Support for Complex Projects

Hongruntong Marine maintains global support capability with engineers who specialize in heavy lifting operations, offshore commissioning, and port crane certification. We provide on-site deployment assistance, load test planning, rigging configuration design, and safety compliance consultation. This gives clients confidence in executing technically demanding proof load tests, whether in a remote offshore platform or a congested port terminal.

Long Term Reliability Lifecycle Value

Our products are engineered for long service life with low maintenance requirements. Materials are selected for UV stability, corrosion resistance, and mechanical robustness. We provide maintenance programs including inspection guidelines, repair protocols, and recertification services. This long-term reliability ensures lower lifetime costs compared with single-use or low-durability alternatives. Customers choose Hongruntong Marine because they need durable, repeatable, high-accuracy test equipment that will remain reliable even after years of operation in harsh environments.

FAQ

1. How accurate is the applied load during water filling?

The load accuracy typically falls within ±1% when using standard calibrated flow meters. For high-precision projects, digital flow measurement systems can improve accuracy further. Operators can apply load gradually in small increments to verify structural response at each stage.

2. Can these Water Weight Bags be used in desert or high-temperature marine regions?

Yes. The TPU-coated structural fabric is engineered for thermal stability, UV resistance, and salt-spray durability. Bags can be safely operated in environments exceeding 50°C without losing mechanical performance, provided standard operating guidelines are followed.

3. What lifting equipment is required to handle the bags?

Empty bags are lightweight and can be handled manually. During operation, standard shackles, certified lifting slings, or spreader beams are used according to the load plan. Hongruntong Marine supplies detailed rigging diagrams and can assist in configuring multi-bag systems for large-capacity tests.

4. How fast can the bags be filled or drained?

Filling and draining times depend on water supply flow rate. High-capacity valves ensure efficient operation; a 20-ton bag can typically be filled in 15–25 minutes and drained in under 20 minutes. Optional quick-discharge manifolds allow rapid turnaround for multi-stage tests.

5. What certification documents are provided with each product?

Each Water Weight Bag comes with fabrication records, hydrostatic test results, material specifications, load rating documentation, and serial tracking. Additional third-party certification can be provided upon request, including class approvals or inspection witness reports.
